Video of Wooden Spoon Making Production Line, Wood Cutlery Making Machine
RYJ-1S Wooden Spoon Hot Pressing Machine (Working Video)
Which wood can be used in wooden spoon, fork, knife making ?

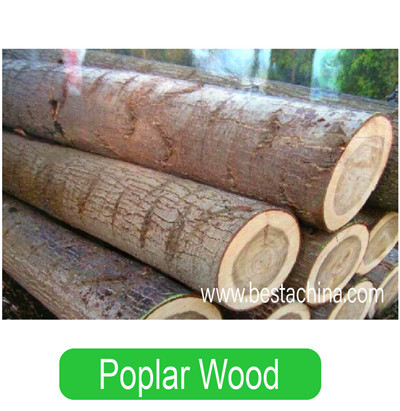

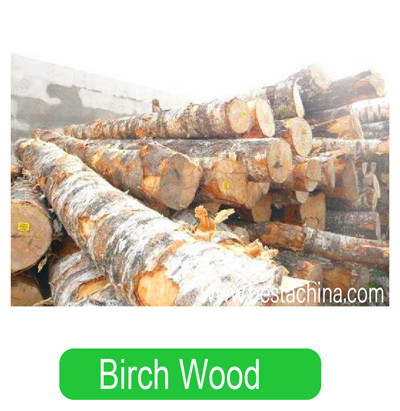

The regular wood we used in making wooden product is birch wood (also called white birch), pine wood, poplar wood and other local wood species.
PRODUCTS MADE FROM OUR OWN MACHINES
WOODEN SPOON MAKING MACHINE
WOODEN FORK MAKING MACHINE
WOODEN KNIVES MAKINGMACHINE
WOODEN PLATE MAKING MACHINE
For this line, it is consisted by the following machines,
(1) L520B Wood Rotary Cutting Machine
(2) CCM-003C Carved Cutting Machine
(3) PG-6-L3 Stick Polishing Machine
(4) BSM-010 Blade Grinding Machine (Magnetism type)
(5) CBJ-1 Wooden Veneer Cutting Machine
(6) KCJ-1 Wooden Fork Teeth Shape Forming Machine
(7) RYJ-1/RYJ-1S Wooden Spoon Hot Pressing Machine
(8) RYJ-2 Wooden Plate Hot Pressing Machine
(9) LY-5 Wooden Spoon Branding Machine (Logo Printing)
BESTA BAMBOO MACHINE CO., LIMITED.
Wood Rotary Cutting Machine
Name: Wood Rotary Cutting Machine
Power : 16.2 KW (380V, 50HZ)
Process Length of Wood: 480MM
Processing Thickness Range: 1 to 2.3 MM
Diameter of Wood Maximum it can process: 780mm
Rotation Speed: 240R/MIN
Machine Size: 2500*2400*1300MM
Machine Weight: 2200KGS
Carved Cutting Machine
Model: CCM-003S (NEW MODEL)
Power : 2.2 KW
Working Voltage: 380V,50HZ (Three phase)-Can be customerized made.
Die Cut Thickness: 2.2 to 8.8 mm
Machine Size:1200*800*1200 MM
Machine Weigh: 550 KGS
Our machine is using Japan Needle Bearing.
The performance is 8 times better than former type.
We have two types, one is normal type and another is with FREQUENCY CONTROL.
WOODEN ICE CREAM STICK POLISHING AND DRYING MACHINE
MachineSize: 5700(L)*2200(W)*2200(H) MM
Machine Weight: 3200 KGS
Magnetism Blade Grinding Machine
Blade Sharpening Machine for wood rotary cutting blade.
TYPE: Electromagnetism type
Power: 4 KW
Working Voltage； 380V,50HZ
Grinding Precision: Less than 0.05 mm
Machine Weight: 1000 KGS
Machine Size: 2200*1100*1200 MM
The function of this machine is for convert the Steam into heat and then the heat (hot air)
Will be used for stick polishing process.
1 set of PG-6-L3 polishing machine shall be cooperated with 1 set of heat exchanger and draught fan.
For 1 set of heat exchanger is consisted by 5 PCS of small heat exchanger.
Each Piece Size ：180*1000*1920 MM
Power: 15 KW (380V,50HZ)
Function: Conduct the hot air into polishing machine
Machine Size: 1000*1600*900 MM
Machine Weight: 350 KGS
Wooden Spoon Hot Pressing Machine
Name: Spoon Hot Pressing Machine
Function: It is used in wooden spoon shape forming.
It is the last machine for the finished product shape forming.
Temperature：0 to 999 degree centigrade.
Pressure: 20000 KGS
Machine Size: 1800*1400*1900 MM
Machine Weight: 1300 KGS
Production Output: 7000 to 9000 PCS/Hour
Wooden Fork Teeth Making Machine
Name: Wooden Fork Teeth Making Machine
Machine Size: 750*600*1400MM
Weight: 170 KGS
Manufacturing Speed: 5000 to 8000 PCS/Hour
This machine is mainly used for teeth shape forming of wooden fork.
Carved Cutting Blade Sharpening Machine
This machine is used for carved cutting blade sharpening.
Ex. 93mm ice cream stick blade, 114mm ice cream stick blade.
MACHINE SIZE: 900*650*1000 MM
POWER: 0.37 KW
This machine is designed by our-self. It is easy
for grinding the carved cutting blade
White Based Board Planing Machine
Name: White Board Planing Machine
Max. Processing Width: 210 MM
For ice cream stick carved cutting machine, after 1 day of using, the white based cutting board
Needs to be planed the surface.
LY-5 Logo Branding Machine
Name: Logo Branding Machine
Power: 0.37 KW (380V,50HZ)
Application: Wooden spoon,fork and knife making production line
Production Capacity: 10,000 PCS/HOUR
Machine Size: 750*600*1400 MM
Machine Weight: 170 KGS
Complete Line Introduction of Wooden Spoon, fork, knife Making Machine
Wooden Spoon Hot Pressing Machine Video
L520B Wood Rotary Cutting Machine Video -WOODEN VENEER MAKING
CCM-003C CARVED CUTTING MACHINE VIDEO
PG-6-L3 HIGH QUALITY WOODEN ICE CREAM STICK POLISHING MACHINE
BSM-010 ELECTROMAGNETISM BLADE GRINDING MACHINE
Before Starting Wooden Ice Cream Stick Making Projects
Over the past 10 years,we have received more than 200 customers to visit our factory.
Our machines are widely exported more than 30countries.Iternational Service Available.
Our services and commitment
Our after-sales service has always been in place and we are able to provide quality after-sales service.
We used to send our machine engineers to many countries ex. Nigeria, India, Indonesia, Thailand, Myanmar, Cameroon,
and many other countries in helping customers build their own factories and give them professional technical guidance,
we can consider more for you. We will continue to serve our customers by provide good technical services.
Regarding export services, we have a professional team to provide you with intimate and quality services.
We will produce according to the requirements of the customer country.
If you need high quality machines and good service, please contact us. Choose us and choose success.
