Item specifics

Application
Bamboo Toothbrush Machine
Packing
Plywood Case
Delivery time
Within 35 days
Brand
BESTA

Review

Description

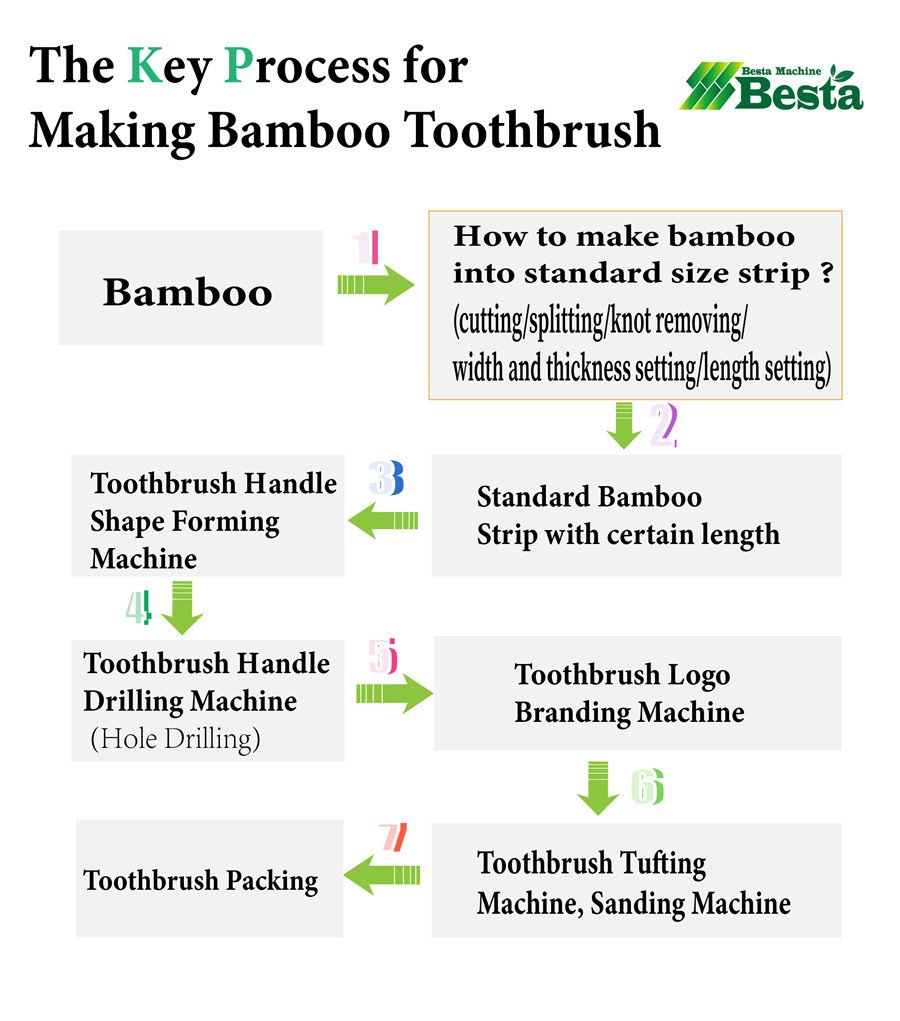

Bamboo Toothbrush Making Production Line

The Whole Production Line About Bamboo Toothbrush Machine
It is consisted by the following machine

(1) ZG-1 Raw Bamboo Sawing Machine

(2) ZP-2500  Bamboo Splitting Machine

(3) MZP-3 Fixed Width Slicer

(4) MZP-1 Small Layering Machine

(5) MBZS-4 Bamboo Stick Making Machine

(6) BJQ-1 Precise Cutting Machine

(7) TPG-6 Hexgonal Stick Polishing Machine

(8) SGJ-1 Toothbrush Stick Sanding Machine

(9) ZSJ-1 Toothbrush Shape Milling Machine

(10) ZSJ-2 Toothbrush Angle Chamfering Machine

(11) DKJ-1 CNC Toothbrush Punching Machine

(12) ZMJ-1 High Speed Toothbrush Bristle Machine


Raw Bamboo Sawing Machine
Model: ZG-1
Brand Name: BESTA MACHINE
Function: Cut the bamboo.
in a certain length
Power: 2.2 KW
Machine Size:
1100 * 555 * 1200 MM
Machine Weight: 85 KGS

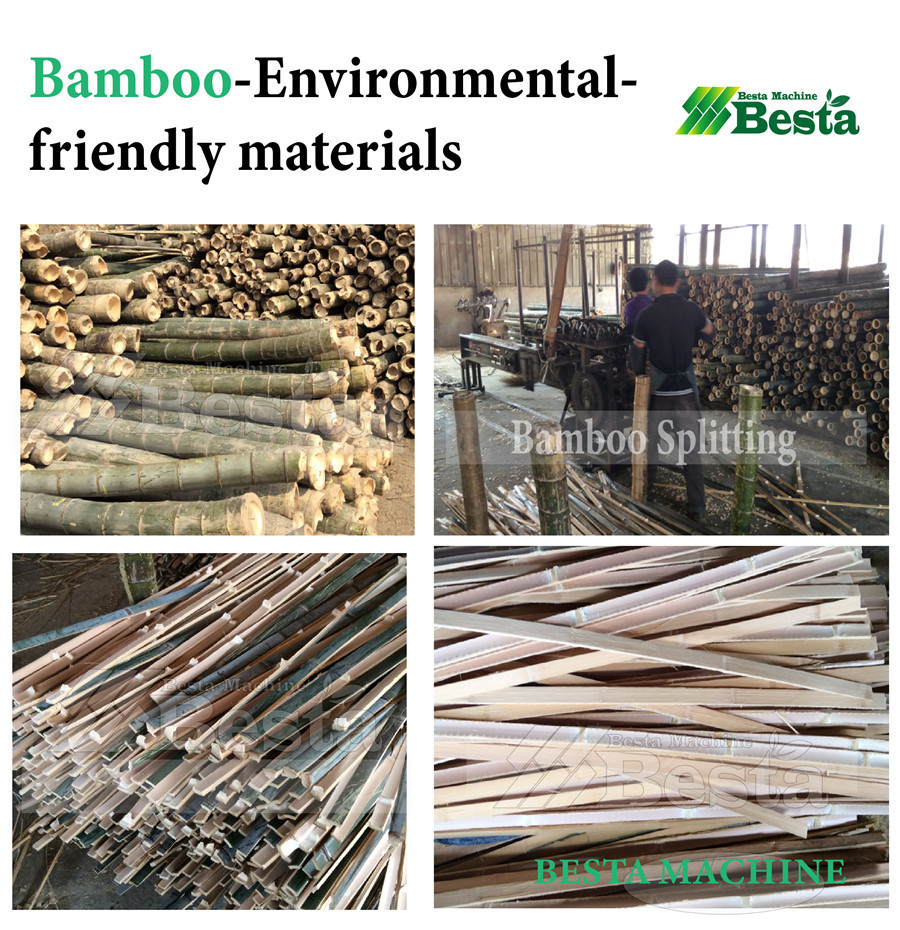

Bamboo Splitting Machine
Model: ZP-2500
Brand Name: BESTA MACHINE
Function: Splitting the bamboo into strip (with certain width)
Power: 5 KW
Division Length: Max 2.7 meters
Machine Size:
4270 * 1000 * 1150 MM
Weight: 850 KGS
Fixed Width Slicer
Model: MZP-3
Brand Name: BESTA MACHINE
Function: width / thickness
 adjustment,knot removal, layer separation
Max. Processing Thickness:
25 mm
Power: 10.6 KW
Machine Size:
2300 * 570 * 1190 MM
Weight: 600 KGS
Small Layering Machine
Model: MZP-1
Brand Name: BESTA MACHINE
Power: 2.2 KW (three phase)
Feeding Speed: 50 M/MIN
Processing Thickness:
2 ~ 15 MM
Net Weight: 120 KGS
Machine Size:
540 * 570 * 960 MM

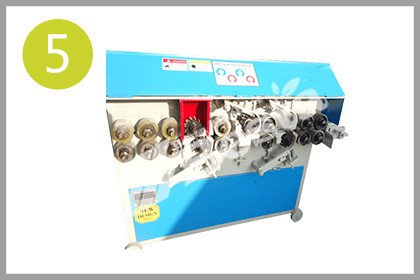

Bamboo Stick Making Machine
Model: MBZS-4
Brand Name: BESTA MACHINE
Function: Making Bamboo
Strip into bamboo stick
General Power: 9.5 KW
Main Axis Speed: 4600 RPM
Mechanical Size:
1250*1000*950 MM
Net Weight: 600 KGS

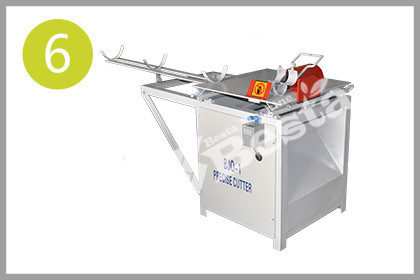

Precise Cutting Machine
Model: BJQ-6
Brand Name: BESTA MACHINE
Power:  1.5 KW
Saw Equipped : 1 PC
Main Axis Rotation Speed: 3000 RPM
Saw Diameter: 300 MM
Net Weight: 90 KGS
Machine Size:1300*700*750 MM

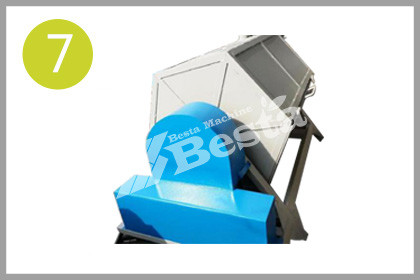

Hexgonal Stick Polishing Machine
Model: BPG-1G (HIGH SPEED)
Power: 2.2 KW
Volume of Polishing Each Time:
0.75 M3
Rotation Speed: 35 R/MIN
Machine Size:
1950*1230*1150 MM
Weight: 450 KGS

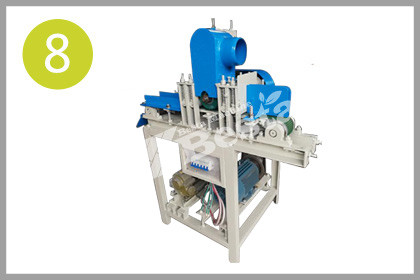

Toothbrush Stick Sanding Machine
Model : SGJ-1
Brand Name:BESTA MACHINE
Power: 3.55 KW
Feeding Speed: 7 Meter/Min
Sanding Belt Linear velocity:
21 M/Minute
Machine Size
1020*650*1250 MM
Weight：290 KGS

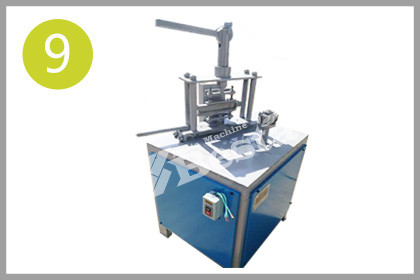

Toothbrush Shape Milling Machine
Model: ZSJ-1
Brand Name: BESTA MACHINE
power: 3 KW
Press plate stroke: 25 MM
One-time clamping quantity:
5 MM thick 5 pieces
Copying mode: manual copying mode shall prevail
Mechanical dimension: 750*630*1170 MM
Weight: 198 KGS

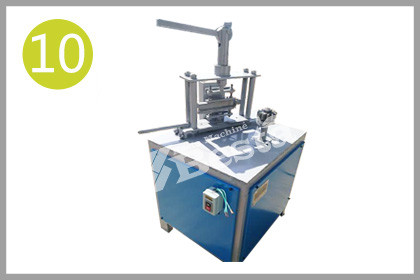

Toothbrush Angle Chamfering Machine
Model : ZSJ-2
Brand Name: BESTA MACHINE
power: 3 KW
Press plate stroke: 25 MM
One-time clamping quantity:
5 MM thick 5 pieces
Copying mode: manual copying mode shall prevail
Mechanical dimension: 750*630*1170 MM
Weight: 198 KGS

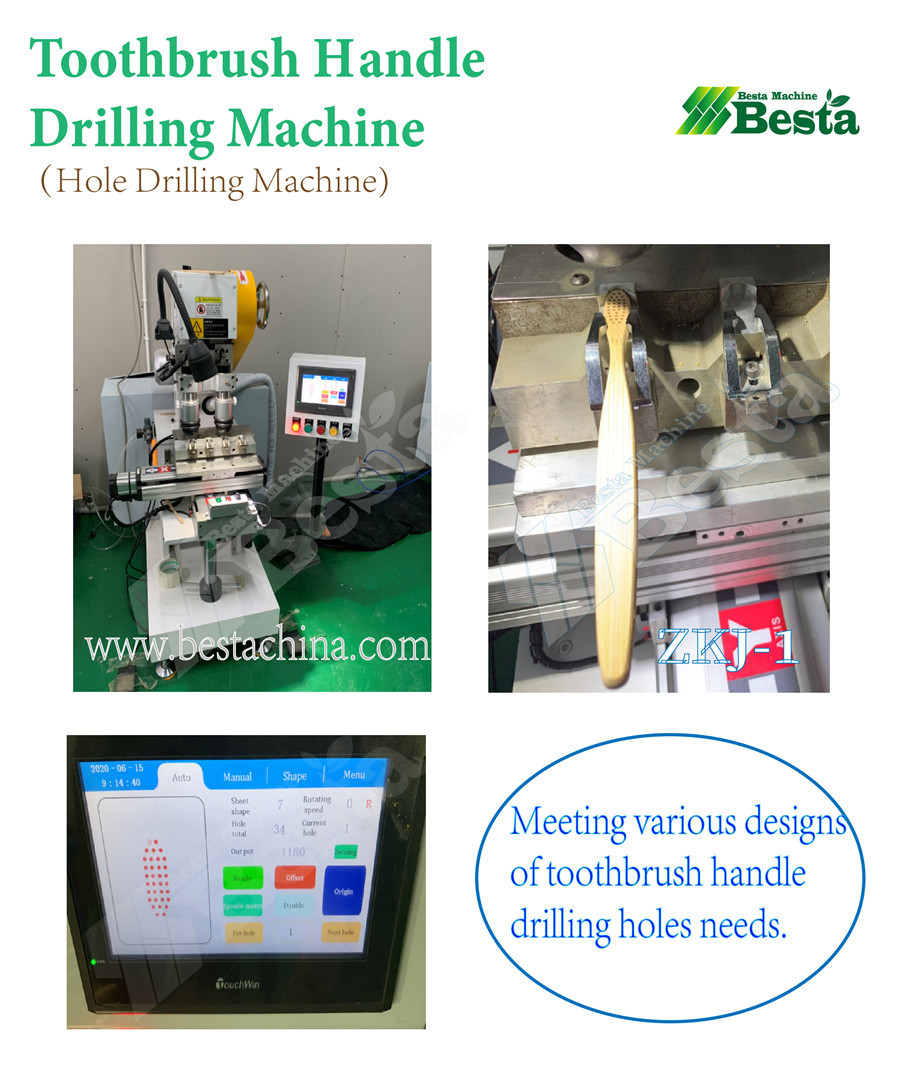

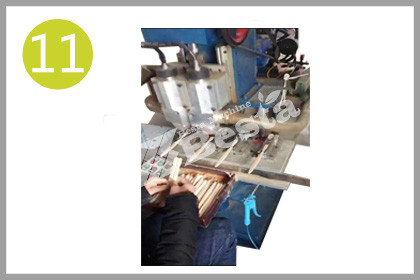

CNC Toothbrush Punching Machine
Model: DKJ-1
Brand Name: BESTA MACHINE
Power: 0.37 KW
X-axis Y-axis motor power:
2 sets of 400w servo motor
Drill shaft speed: 10000 RPM
Mechanical dimension: 1000*820*1230 MM
Weight: 450 KGS
Output: 6 seconds per unit

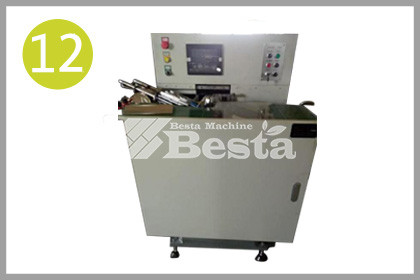

High Speed Toothbrush Bristle Machine
Model: ZMJ-1
X-axis Y-axis rotary table motor: 750W servo motor
Planting speed:
750 Times / Minute
Main motor: 370 W
Mechanical size:
1000*1000*1100 MM
Weight: 750 KGS
Production: 8 seconds / month


Contactanos

Entre em contato conosco

Hubungi kami

ANGEL ZHOU 0086 186 5710 6860 (Whatsapp)

www.bestamachine.com

www.bestachina.com

Email: info@bestachina.com

QQ: 411601505

Skype: angel12242008

Alternative email:

angelzhou1224@gmail.com

angelzhou1224@foxmail.com

For how to visit us: Nearest Airport:

HANGZHOU AIRPORT.

Bamboo Toothbrush Handle Milling Machine
VIDEO LINK: https://youtu.be/VQ619ImIg6g
Bamboo Toothbrush Handle Drilling Machine Video
https://youtu.be/924HAGVJkEc
Bamboo Toothbrush Tufting Machine Video
https://youtu.be/1y_yBhVC1gU

recommend

Bamboo Toothbrush Handle Drilling Machine

Bamboo Toothbrush Handle Drilling Machine

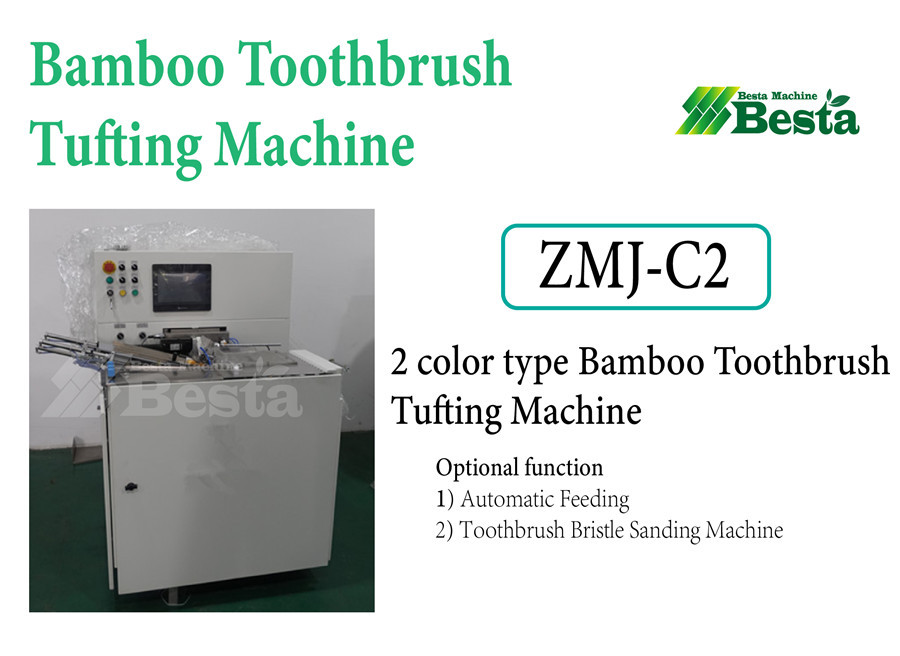

Two color Automatic Bamboo Toothbrush Tufting Machine

Two color Automatic Bamboo Toothbrush Tufting Machine

Bamboo Toothbrush Handle Milling Machine

Bamboo Toothbrush Handle Milling Machine

How to do the logo branding of toothbrush handle

How to do the logo branding of toothbrush handle

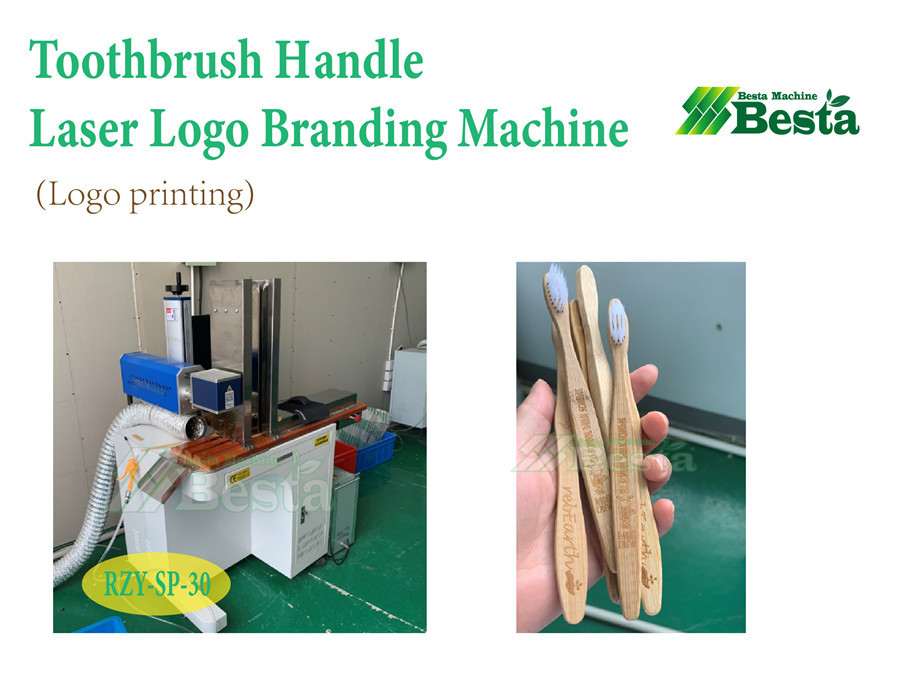

Bamboo Toothbrush Laser Logo Branding Machine

Bamboo Toothbrush Laser Logo Branding Machine

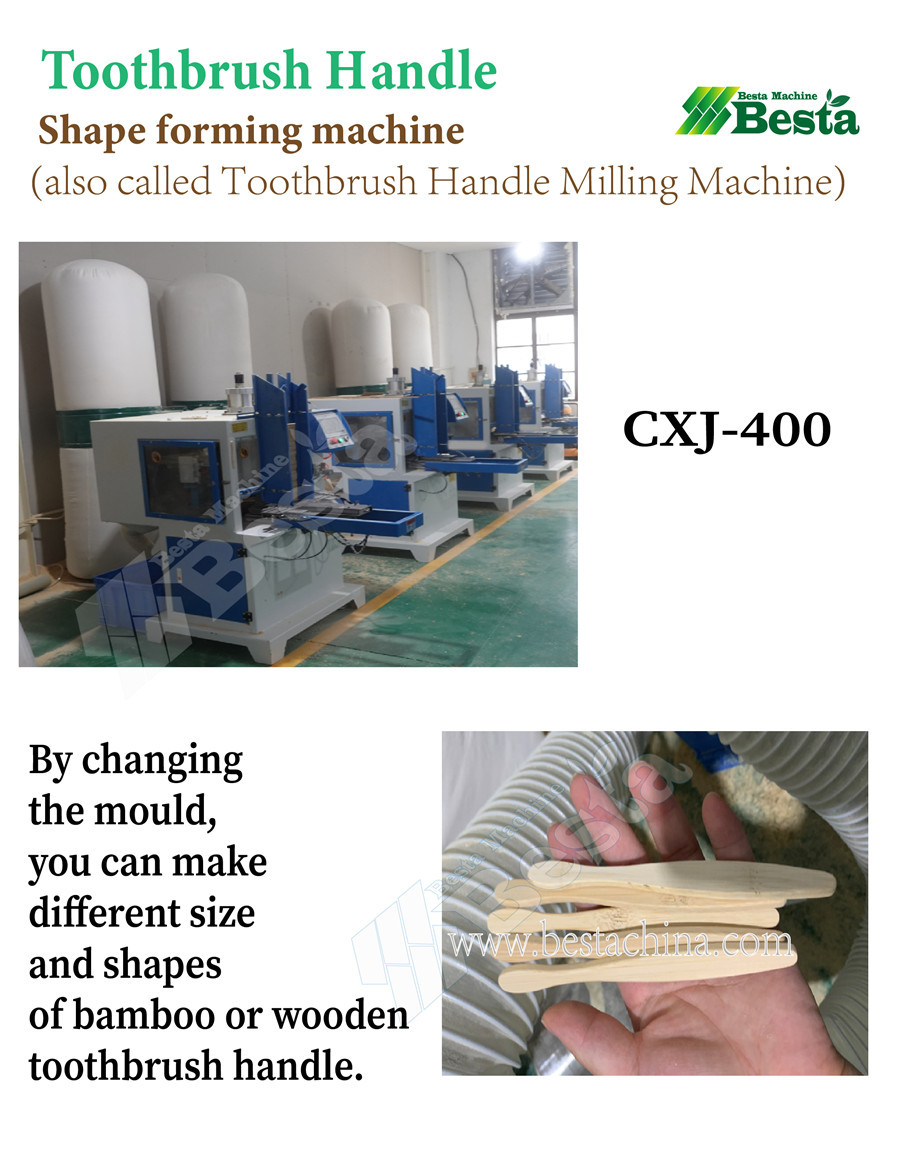

Bamboo Toothbrush Handle Shape Copying Machine (CXJ-400)
